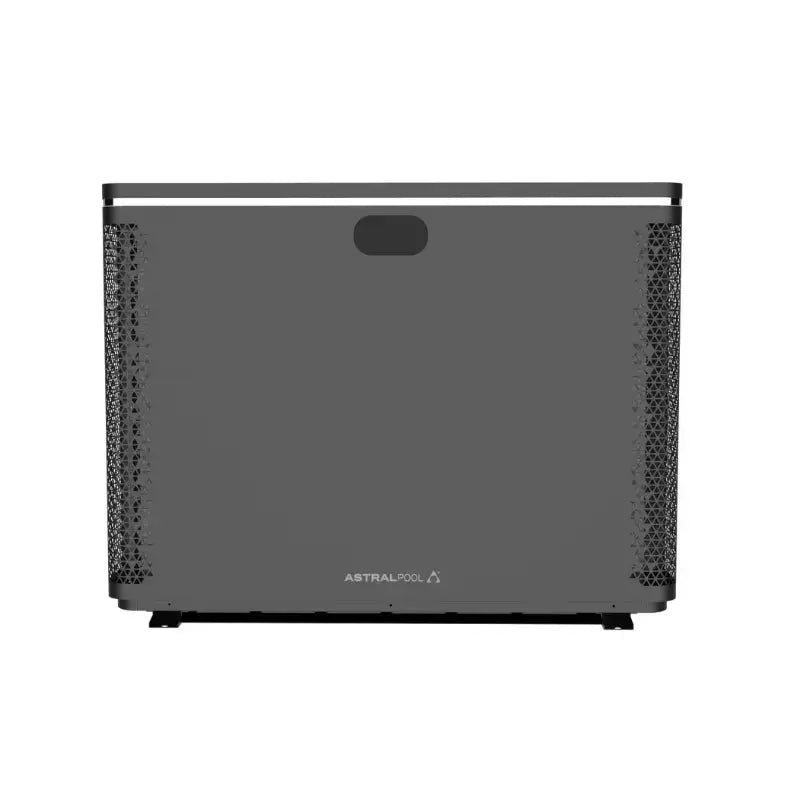

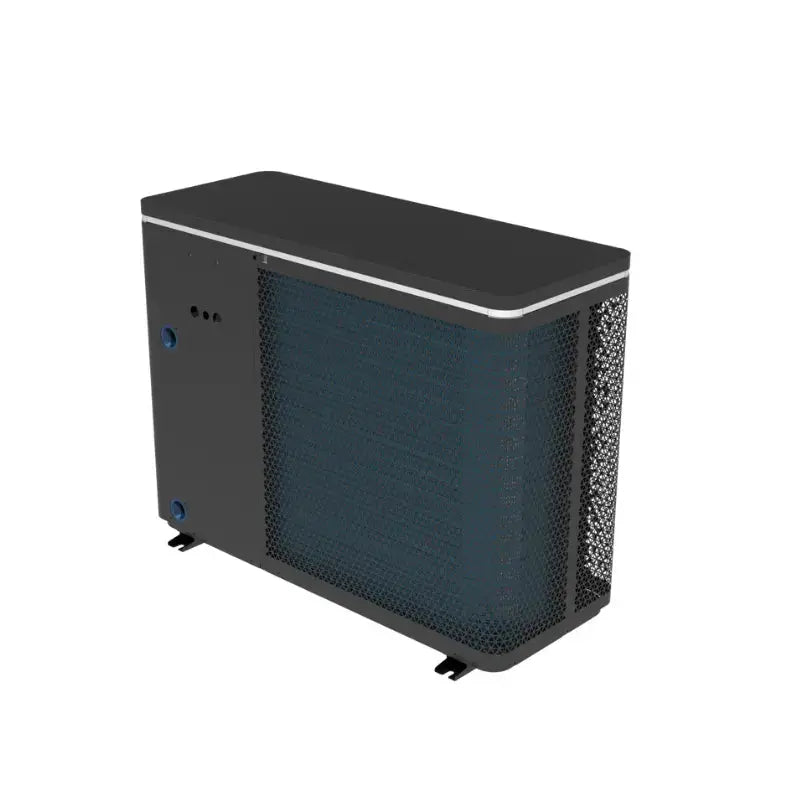

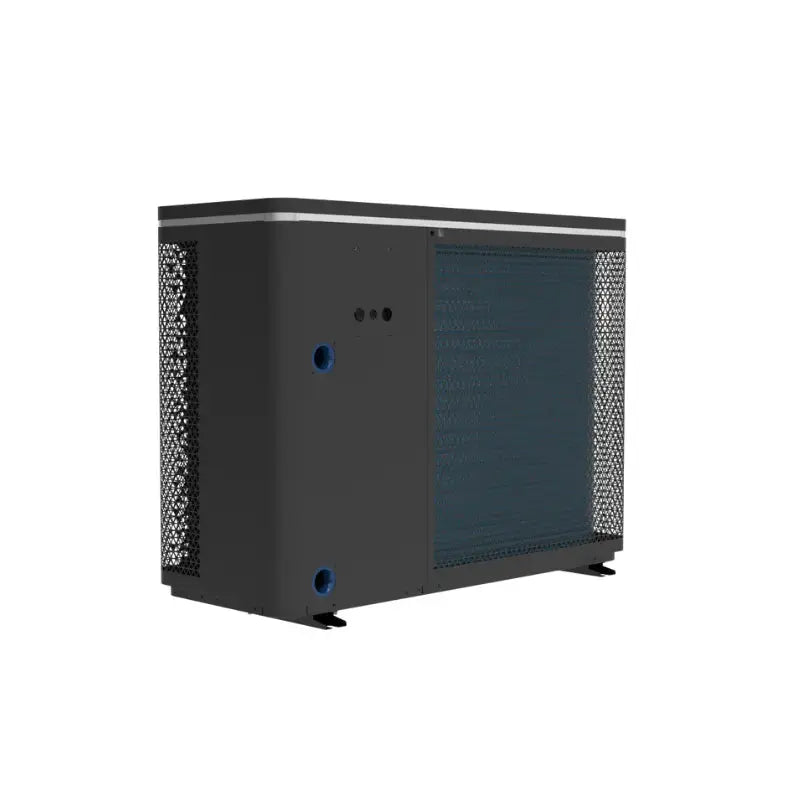

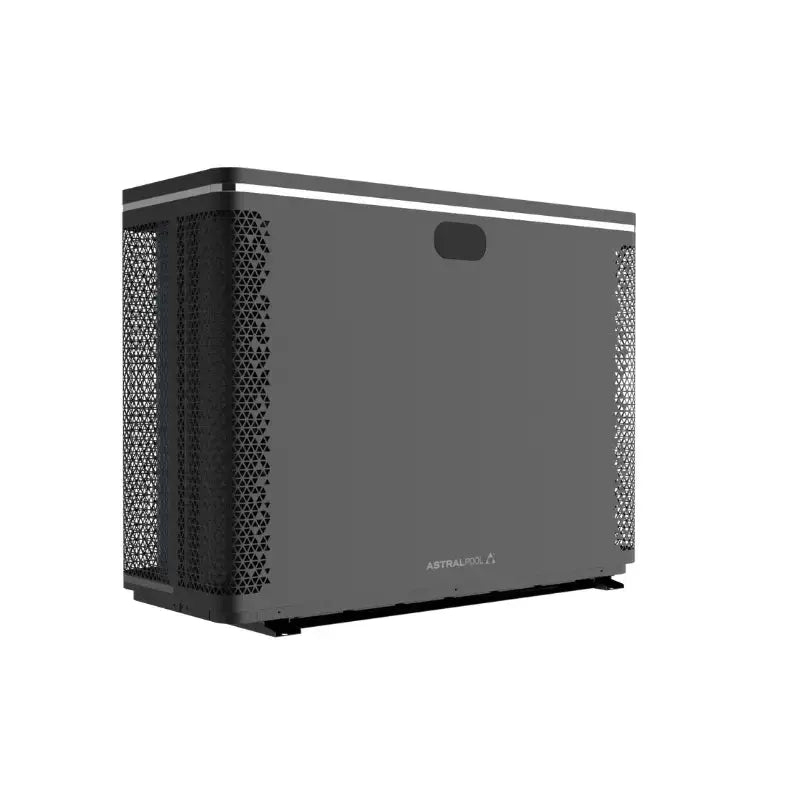

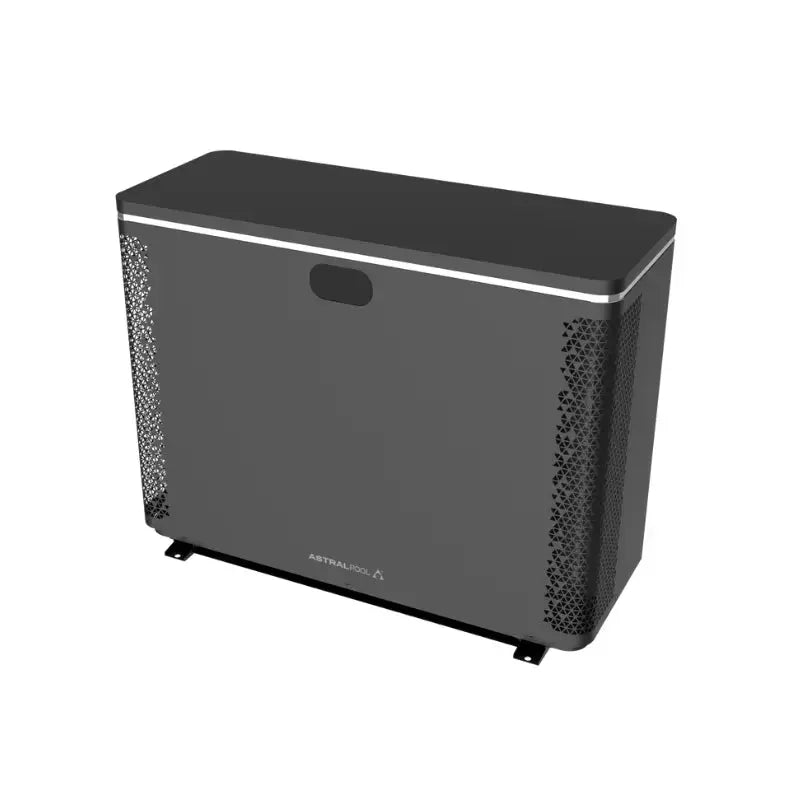

AstralPool Pinnacle iHP SD 217 Heat Pump

ASTRALPOOL PINNACLE IHP SD 217 HEAT PUMP

PREMIUM PERFORMANCE. MAXIMUM EFFICIENCY. WHISPER QUIET.

The AstralPool Pinnacle Inverter Heat Pump is the ultimate choice for pool owners seeking superior heating performance and energy savings. Designed to operate efficiently in outdoor temperatures as low as -15°C, it ensures year-round comfort without compromise.

Featuring advanced multilayer acoustic insulation around the compressor, the Pinnacle delivers whisper-quiet operation, making it one of the quietest heat pumps available. Its high-efficiency inverter technology achieves a COP of up to 22, reducing energy costs while maintaining optimum water temperature.

Stay connected wherever you are with the included Wi-Fi module, giving you complete remote access to your pool’s temperature settings. Or seamlessly integrate your pool heating with the Halo or Connect 10 automation systems for effortless, plug-and-play control.

As a Fluidra exclusive premium heat pump, the AstralPool Pinnacle represents innovation, energy efficiency, and convenience. This is the perfect solution for a smarter, quieter, and more sustainable pool heating experience.

FEATURES

ENVIRONMENTALLY FRIENDLY

AstralPool Heat Pumps are an environmentally friendly option to heat your pool. Operating on a similar principle to your refrigerator or air conditioner, Heat Pumps use environmentally friendly refrigerant gas that extracts the latent heat from the air and transfers this heat into the pool water.

BUILT FOR AUSTRALIAN ENVIRONMENTS

Unlike many other heat pumps, the corrosion proof titanium heat exchanger is enclosed in a purpose designed and fully injection moulded housing for maximum strength and long life. The fully moulded plastic Heat Pump case is impervious to corrosion and guarantees maximum life regardless of location, “seaside” tropical north or outback.

QUIET COMPRESSOR

A nearly silent compressor moves the refrigerant gas through a coil (called evaporator) through which air is forced and collects heat from the surrounding atmosphere. The now superheated refrigerant gas then passes through a titanium heat exchanger (called a condenser) which transfers the heat into the pool water and the cycle starts again.

ENERGY EFFICIENT

For every 1 kW of electricity consumed, AstralPool Heat Pumps will collect up to 13 kW of heat from the atmosphere. Sunshine is not necessary and your Heat Pump will continue to heat your pool in air temperatures as low as 7 degrees. So even if the nights are cold, or the days leading up to the weekend are cool, your AstralPool Heat Pump can heat and maintain your pool water temperature at a comfortable swimming temperature.

GALVANIZED & POWDER COATED STEEL CABINET

Long lasting galvanized and Powder coated steel cabinet for durability. The Pinnacle range also features a refined, screwless exterior design.

LCD SCREEN

Water proof LED controller with intuitive control of settings.

WIFI CONTROL

The Pinnacle range and Top Discharge heat pumps come included with WiFi. Also available as an optional add on for all other models.

WHISPER QUIET OPERATION

The Pinnacle compressor features an advanced five-layer silencer casing, delivering industry-leading acoustic performance with noise levels as low as 27 decibels, making it the quietest heat pump in its class.

AUTOMATION

Easy installation to most Automation systems. Plug & Play system for AstralPool’s Halo and Connect 10.

ADVANCED ELECTRONICS DESIGN

Superior design integrates insect isolation architecture and optimized thermal pathways to ensure superior protection and efficient heat dissipation.

QUALITY COMPONENTS

High quality internal components including a Panasonic compressor.
