Madimack InverELITE V4 120 Heat Pump

Madimack InverELITE V4 120 Heat Pump

Taxes included. Shipping calculated at checkout.

Available In-Store Only

MADIMACK INVERELITE V4 120 HEAT PUMP

WORLD’S MOST EFFICIENT. WORLD’S QUIETEST. WORLD CLASS INNOVATION.

InverELITE V4 pool heater is the world’s most efficient and quietest heat pump. The revolutionary 3-directional airflow ensures almost silent operation and enhanced efficiency. Engineered with installation support features such as Plug & Play technology, Wi-Fi, plus quick connectivity, the InverELITE V4 sets a new standard in performance and innovation. This unit delivers unmatched pool heating excellence.

FEATURES

REVOLUTIONARY 3-DIRECTIONAL AIRFLOW

3D triple-directional airflow minimises installation requirements and enhances efficiency.

QUIETEST HEAT PUMP IN THE WORLD

Its finely engineered design includes 3 layers of insulation (condensed fibre, foam and metal jacket), resulting in a 30% reduction in operation noise and achieving a world breaking decibel rating for heat pump technology.

COMMERCIAL GRADE CENTRIFUGAL FAN

The compressor fan is designed with angular blades to capture surplus surrounding air and boost overall efficiency.

TWIN ROTARY COMPRESSOR

InverELITE V4 delivers the fastest heat-up times to pool owners, getting your pool ready quicker than ever.

THE MOST ADVANCED HEAT PUMP

Meticulously designed heat pump achieving a groundbreaking COP of 22, maximising your comfort while minimising your energy use.

PLUG & PLAY

Plug & Play installation simplicity for 10kW, 12kW and 14Kw. External plugs provide easy access and less intrusive access to the heat pump, simplifying installation and providing additional control.

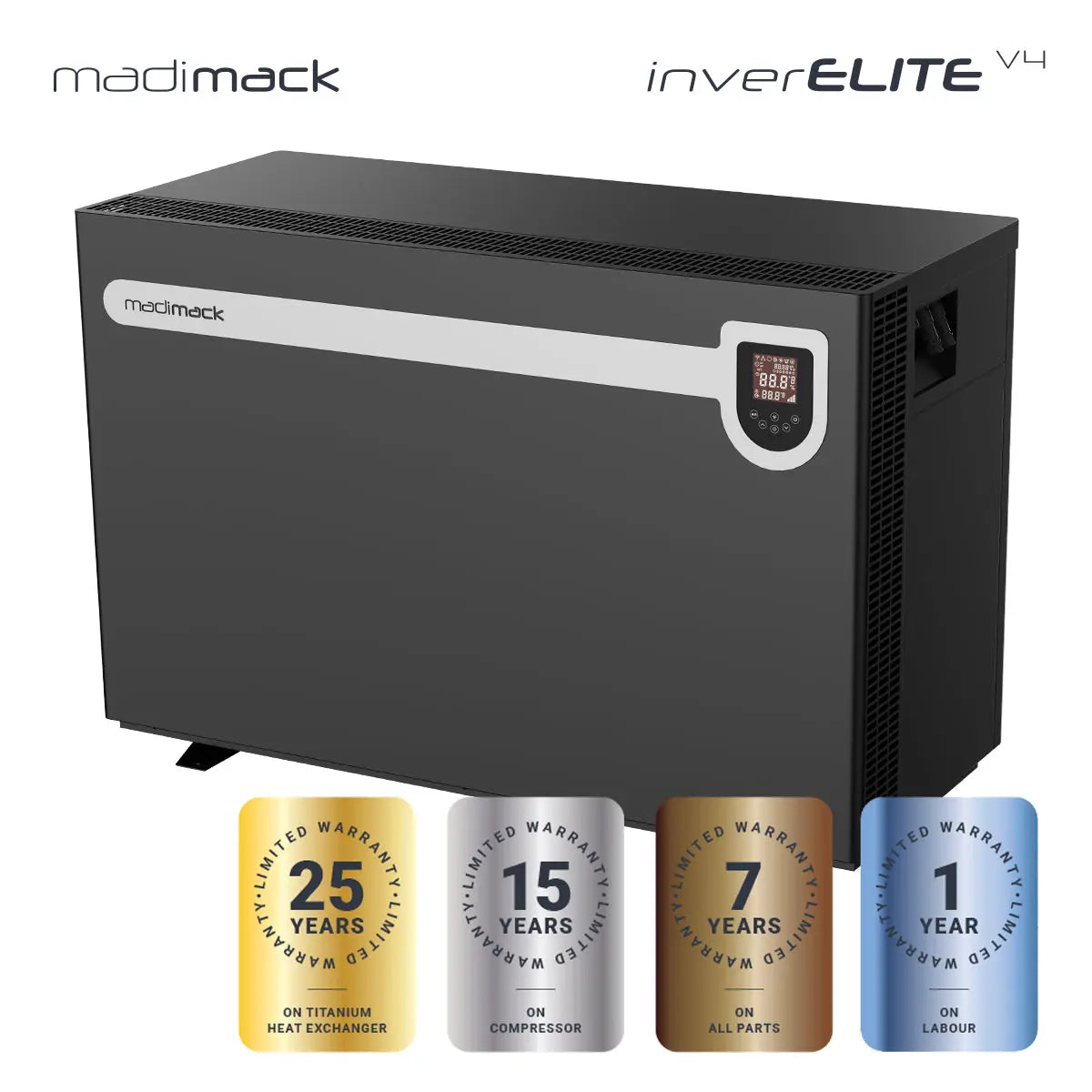

Warranty

Heat Exchanger*: 25 years

Compressor: 15 years

All Parts: 7 years

On-Site Labor: 1 year

*Residential heat pumps installed in public or commercial settings, will have their warranty periods reduced to align with the commercial heat pump warranty terms.

Specifications

Model: InverELITE V4 120

Product Number: HPELV4AU120

kW: 12

Air Flow: 3D AirFlow - 7 years warranty

Power Details: 10A 3 Pin Plug

PERFORMANCE CONDITION:  Air 27°C / Water 27°C / Humid. 80%

  • Heating Capacity (kW): 11.8
  • COP Range: 19.7~7.2

PERFORMANCE CONDITION:  Air 15°C / Water 26°C / Humid. 70%

  • Heating Capacity (kW): 8.1
  • COP Range: 8.1~5.2

PERFORMANCE CONDITION:  Air 35°C / Water 28°C / Humid. 80%

  • Cooling Capacity (kW): 5.5

TECHNICAL SPECIFICATIONS

Temperature Set Point (°C): 5~40

Operating Air Temperature (°C): -20~43

Casing: Aluminum-alloy

Power Supply: 230V/1Ph

Compressor: Twin-Rotary Mitsubishi DC Compressor

Electrical Connection: 10A plug

Rated input Power (kW): 0.19~1.56

Rated input Current (A): 0.83~6.78

Maximum Input Current (A): 10.0

Sound Level at 1m dB(A): 36.0~42.5

Sound Level at 10m dB(A): 16.0~22.5

Advised Water Flow (L/min) ±20%: 65

Water Pressure Drop (kpa): 4

Gas: R32

Water Connection (mm): 40

Net Weight (kg): 83

Gross Weight (kg): 92

Net Dimension L x W x H (mm): 936*494*655

Packaging Dimension L x W x H (mm): 1005*550*685

* The data above is only for reference. For specific data,
please refer to the nameplate on the unit.

* Acoustic data is to TuV international testing conditions,
site conditions may differ.
