Zodiac

Zodiac eXO iQ Salt Chlorinator Large

Zodiac eXO iQ Salt Chlorinator Large

Taxes included. Shipping calculated at checkout.
Quantity

Available In-Store Only

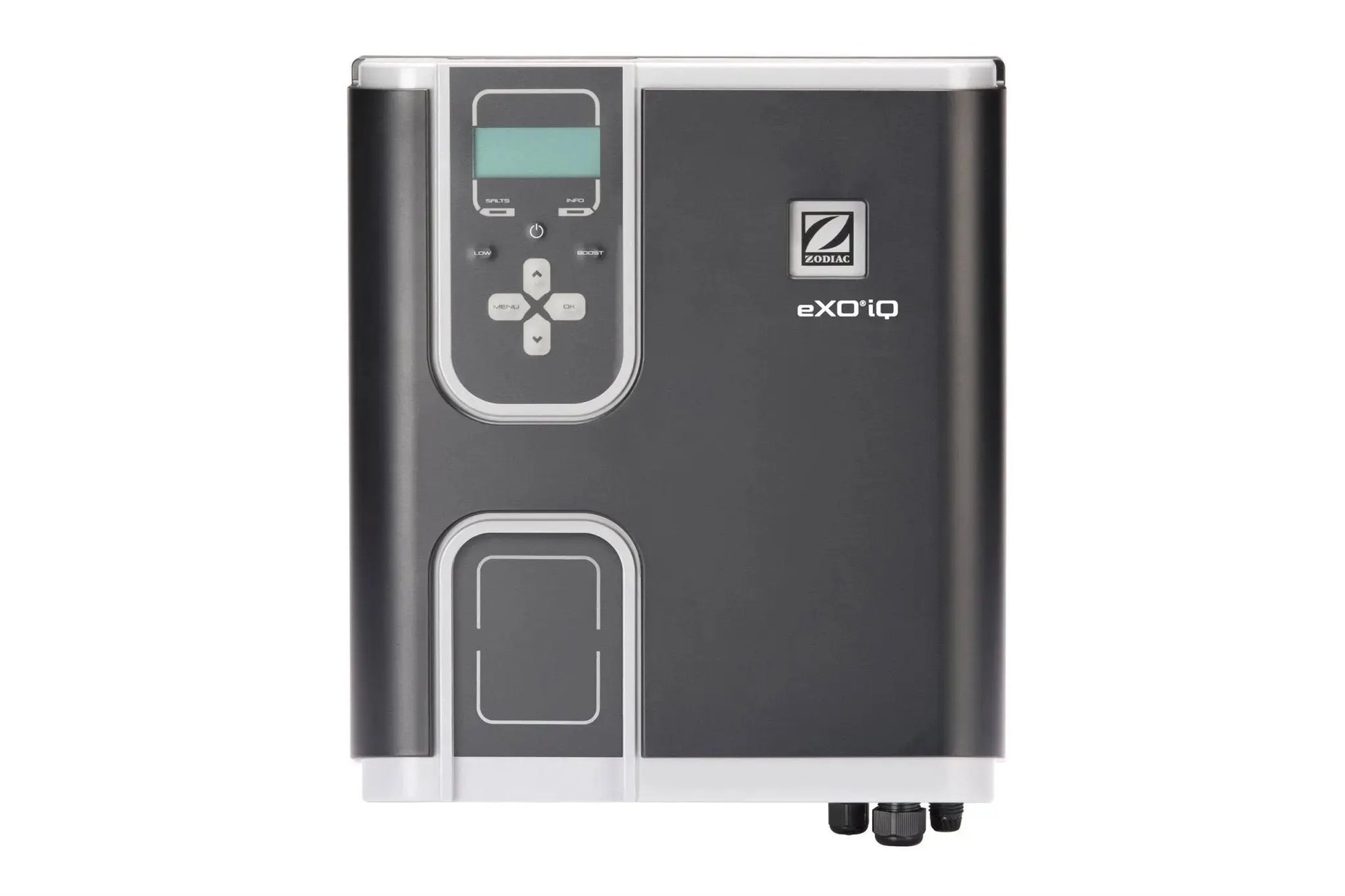

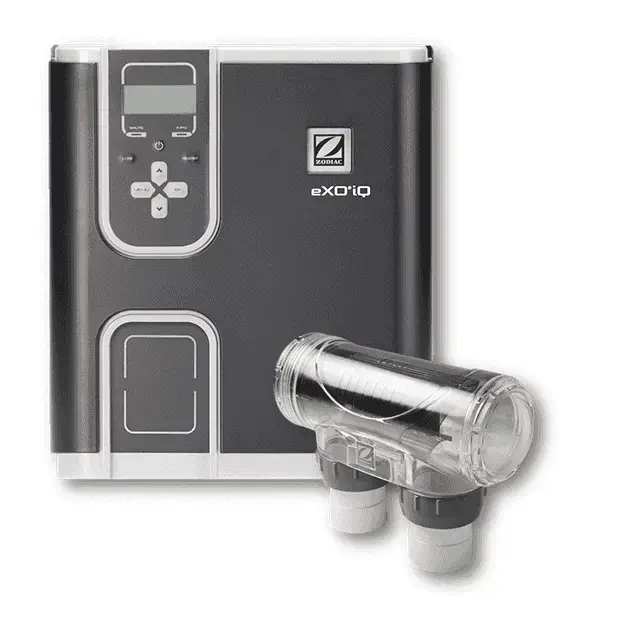

ZODIAC EXO IQ SALT CHLORINATOR LARGE

THE CHLORINATOR THAT KNOWS BEST

The EXO iQ Large offers the same next generation automation and connectivity as the Mid model, with the capacity to handle large pools up to 100,000 litres in a mild climate. With built-in WiFi and iAquaLink control, pool owners can check system status, adjust output and manage their pool from anywhere. The unit includes a long life RP cell, smart temperature sensing and compatibility with both standard salt and mineral blends.

FEATURES

ULTRA LONG LIFE RP CELL

These upgraded automatic cleaning cell plates have an ultra long life, combined with smart tech in the chlorine production that will provide years of performance.

SMART TEMPERATURE SENSOR

Not only can you view real time water temp but this smart sensor automatically regulates output in cold water thus preventing excessive wear and tear on your cell, helping to reduce costs.

VARIABLE SPEED PUMP CONTROL

Directly connect to your Zodiac VS pump and set schedules and speeds to suit the needs of your pool, and reduce energy consumption (for RS485 communication VS pumps).

SALT OR MINERAL SWITCHER

Use normal pool salt or mineral salts to create chlorine and keep your pool water healthy and sanitised at all times.

POOL COVER MODE

Allows you to connect an automatic pool cover that will automatically drop the output to your desired level without having to do a thing.

MULTI COLOUR LIGHT CONTROL

Control your pool light(s) directly from the chlorinator (or your smart phone with iAquaLink). Any single colour light or Zodiac/Jandy sequence multi colour light. Note this feature requires additional relay box to connect. Ask your poolcare professional for more information.

iAQUALINK ENABLED

A built-in WiFi chip that allows you to monitor, control and change all your schedules and outputs directly from your smart phone. iAquaLink is the worlds premier pool equipment control platform. It also allows for constant updates and improvements to be delivered directly into your chlorinator, no call out fee, no hassles iAquaLink puts full control at your fingertips anytime, anywhere (optional feature for standard models please check for marked carton if WiFi enabled).

AUTOMATED WATER CHEMISTRY

If you are looking for the absolute pinnacle in automated water management of your pH and chlorine levels via ORP, these features come standard on the pH or PRO models, but they are also available as upgrades if you want to add them down the track. The premium grade sensors will monitor and keep pH levels in balance and perfectly regulated. Whilst on the PRO version your chlorine levels are continuously monitored and adjusted to ensure safe healthy water every time you go for a swim. All pH and PRO models come with wifi built-in so you can monitor, adjust or control on your iAquaLink app anytime, anywhere.

Warranty

3 years

3 years or 6000 running hours which ever comes first on iQ models.

2 years only on pH and ORP sensors.

1 year on peristaltic pump, tubing, one-way valve, etc… with pH or PRO models

Specifications

Model: Large

Product Number: WW000216

Cell Output: 35 g/h

Maximum Average Pool Size: 100,000L (based on a mild weather climate, please adjust for cooler or hotter)

Recommended Salinity: 4,000ppm

Plumbing Capacity: 40mm / 50mm

Operating Mode(s):

  • Normal = adjustable by 10% increments from 0% - 100%.
  • Low Mode = adjustable range 0 to 30%.
  • Boost Mode = continuous 100% for 24hrs.

Equipment Control:

  • Filter pump: Any single speed pump or Zodiac® variable speed
    pump.
  • Lights: Any single colour light or any Zodiac/Jandy sequence Multicolour light (note will require additional relay box part number WW000222)

Cell Protection: Temperature sensor controls chlorine output in cold water conditions assisting to protect cell against excessive wear and tear.

Warning Indicators:

  • "Low salt" indicator light: Reduced production to
    protect the electrode.
  • “No flow” message: Production is interrupted as long as
    conditions are not ideal.

Power Supply / Operating Power: 196W; 110-240 VAC; 50/60Hz

Power Pack Dimensions (H x W x D): 370mm x 320mm x 100mm

Cell Dimensions (H x W x D): 160mm × 320mm × 110mm
