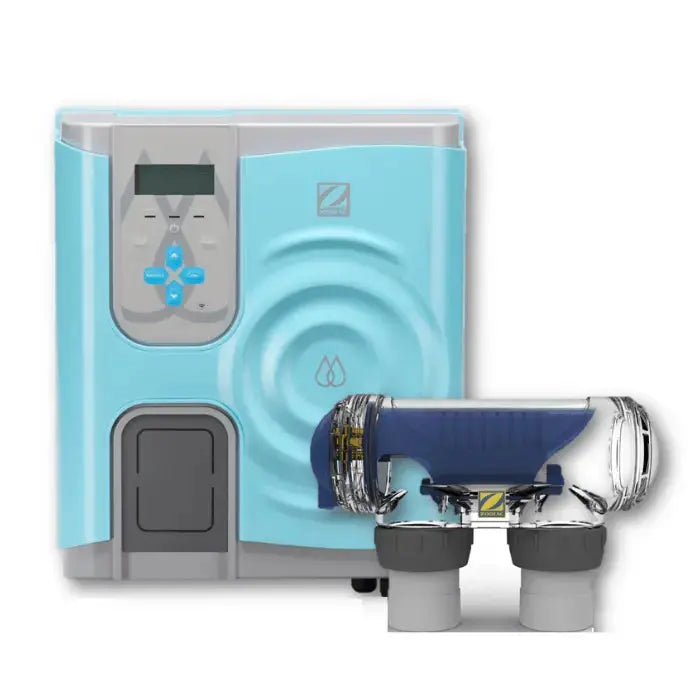

Zodiac Magnapool Hydroxinator iQ Chlorinator Large

Zodiac Magnapool Hydroxinator iQ Chlorinator Large

Taxes included. Shipping calculated at checkout.
Quantity

Available In-Store Only

ZODIAC MAGNAPOOL HYDROXINATOR IQ CHLORINATOR LARGE

SMART DESIGN WITH A HEALTHY MIND

The Hydroxinator® iQ is the core of the MagnaPool® mineral pool system — combining intelligent electrolysis with magnesium chemistry to deliver soft, clear water. It features a long-life reverse polarity (RP) cell, WiFi control via iAquaLink, temperature sensing, and pump integration. With optional pH / ORP upgrades, it becomes a full water chemistry manager.

THE THINKING BEHIND A HEALTHY MAGNAPOOL®

HEALTH & WELLBEING

MagnaPool® minerals soften and produce silky sparkling clear pool water that is gentle on skin, eyes and hair.

SCIENCE

The patented blend of magnesium and potassium minerals provides highly effective sanitizing properties when used as part of a MagnaPool® system.

ENVIRONMENT

Reduces the need for many additional chemicals plus when diluted* MagnaPool® backwash can be used to water your garden.

*we recommend a dilution of 5 water - 1 backwash water. Please note you must abide by the local environmental laws regarding backwash water in your area.

FEATURES

iAQUALINK ENABLED

A standard feature with all MagnaPool Hydroxinators is a built-in WiFi chip that allows you to monitor, control and change all your schedules and outputs directly from your smart phone. iAquaLink is the worlds premier pool equipment device control platform. It also allows for constant updates and improvements to be delivered directly into your hydroxinator, no call out fee, no hassles  iAquaLink puts full control at your fingertips anytime, anywhere.

AUTOMATED WATER CHEMISTRY

If you are looking for the absolute pinnacle in automated water management of your pH and chlorine levels via ORP, these features come standard on the pH or PRO models, but they are also available as upgrades if you want to add them down the track. The premium grade sensors will monitor and keep pH levels in balance and perfectly regulated. Whilst on the PRO version your chlorine levels are continuously monitored and adjusted to ensure safe healthy water every time you go for a swim.

ULTRA LONG LIFE RP CELL

These upgraded automatic cleaning cell plates have an ultra long life, combined with smart tech in the chlorine production that will provide years of performance.

VARIABLE SPEED PUMP CONTROL

Directly connect to your Zodiac VS pump and set schedules and speeds to suit the needs of your pool, and reduce energy consumption.

ADDITIONAL FEATURES

  • Smart temp sensor
  • Pool cover mode
  • Multi-colour light control

Warranty

4 years

4 years or 8000 running hours which ever comes first.

2 years only on pH and ORP sensors.

1 year on peristaltic pump, tubing, one-way valve, etc… with pH or PRO models

Specifications

Model: Hydroxinator® iQ Large

Product Number: WW000194

Cell Output: 35 g/h

Maximum Average Pool Size: 100,000L (based on a mild weather climate, please adjust for cooler or hotter)

Recommended Salinity: 4,000ppm

Plumbing Capacity: 40mm / 50mm

Operating Mode(s):

  • Normal = adjustable by 10% increments from 0% - 100%.
  • Low Mode = adjustable range 0 to 30%.
  • Boost Mode = continuous 100% for 24hrs.

Equipment Control:

  • Filter pump: Any single speed pump or Zodiac® variable speed
    pump.
  • Lights: Any single colour light or any Zodiac/Jandy sequence Multicolour light (note will require additional relay box part number WW000222)

Cell Protection: Temperature sensor controls chlorine output in cold water conditions assisting to protect cell against excessive wear and tear.

Power Supply / Operating Power: 197W; 110-240 VAC; 50/60Hz

Power Pack Dimensions (H x W x D): 370mm x 320mm x 100mm

Cell Dimensions (H x W x D): 160mm × 320mm × 110mm
